Scribe for Leatherman Arc and Free P4/P2
Scribe for Leatherman Arc and Free P4/P2
Scribe for Leatherman Free Series
Please note: only 1 under-scissor tool can be installed at a time (i.e. - scribe or ferro rod).

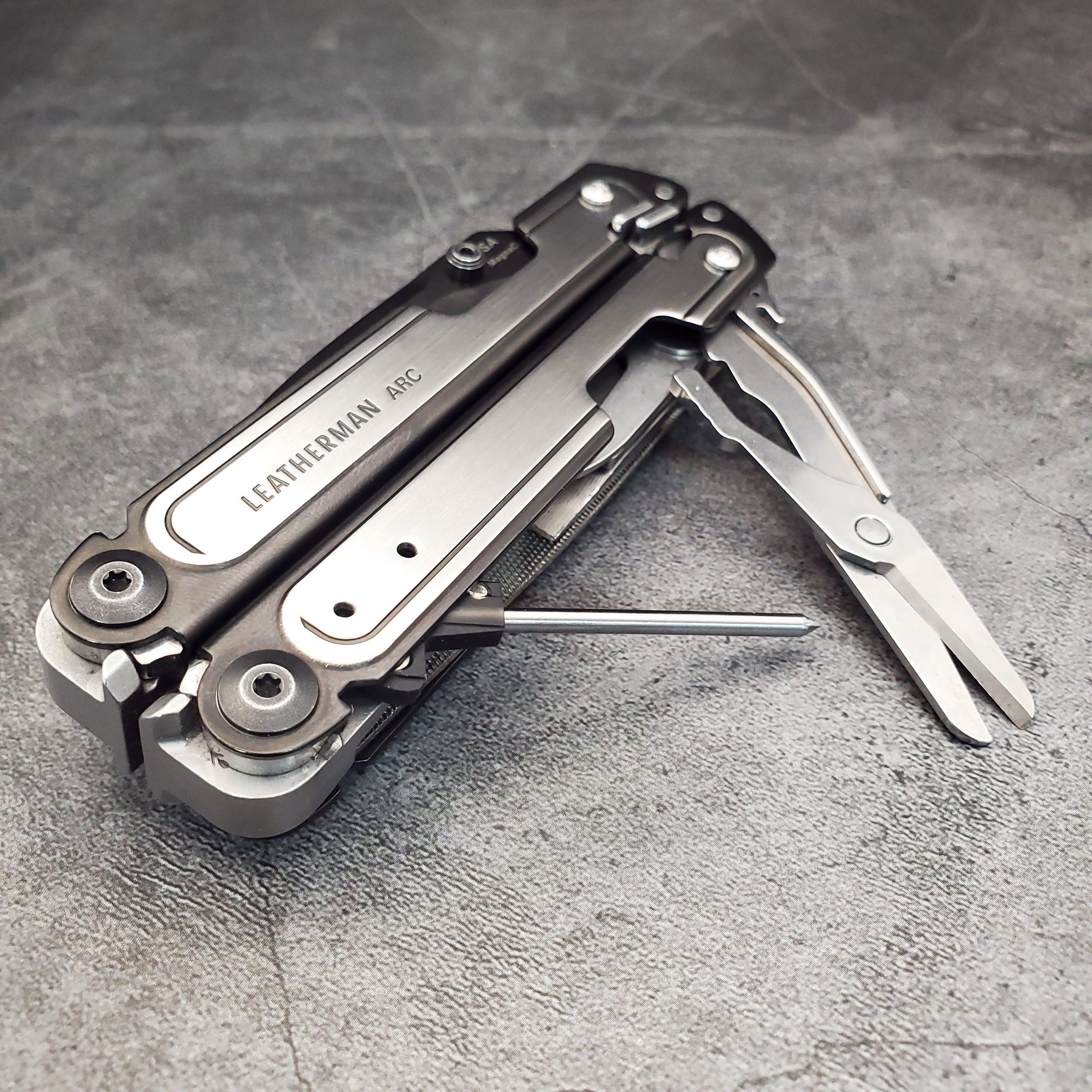

This part is designed to magnetically adhere to the frame underneath the scissors on the Leatherman Arc and Free P4/P2
The scribe itself will either be carbide or HSS depending on what I am able to source.

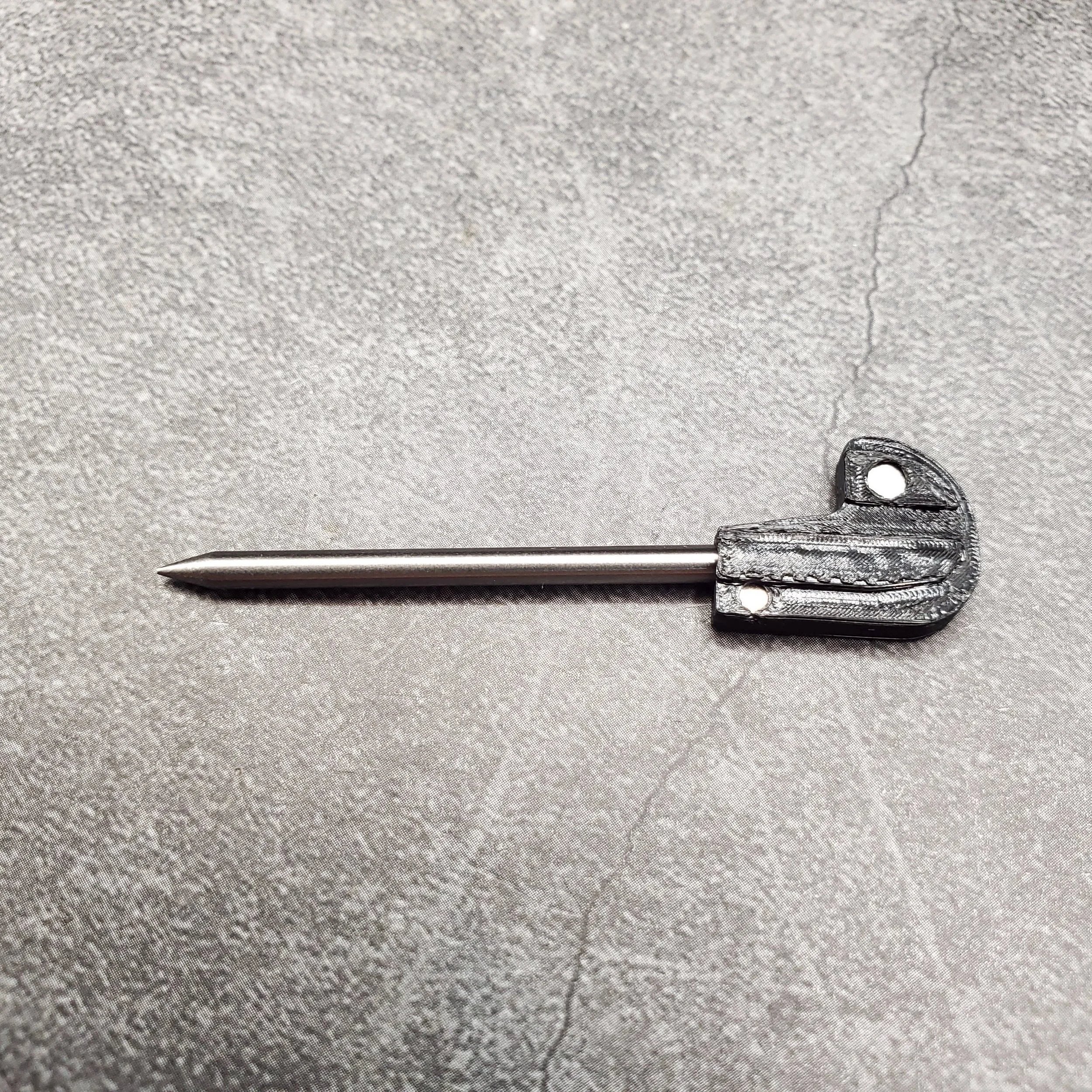

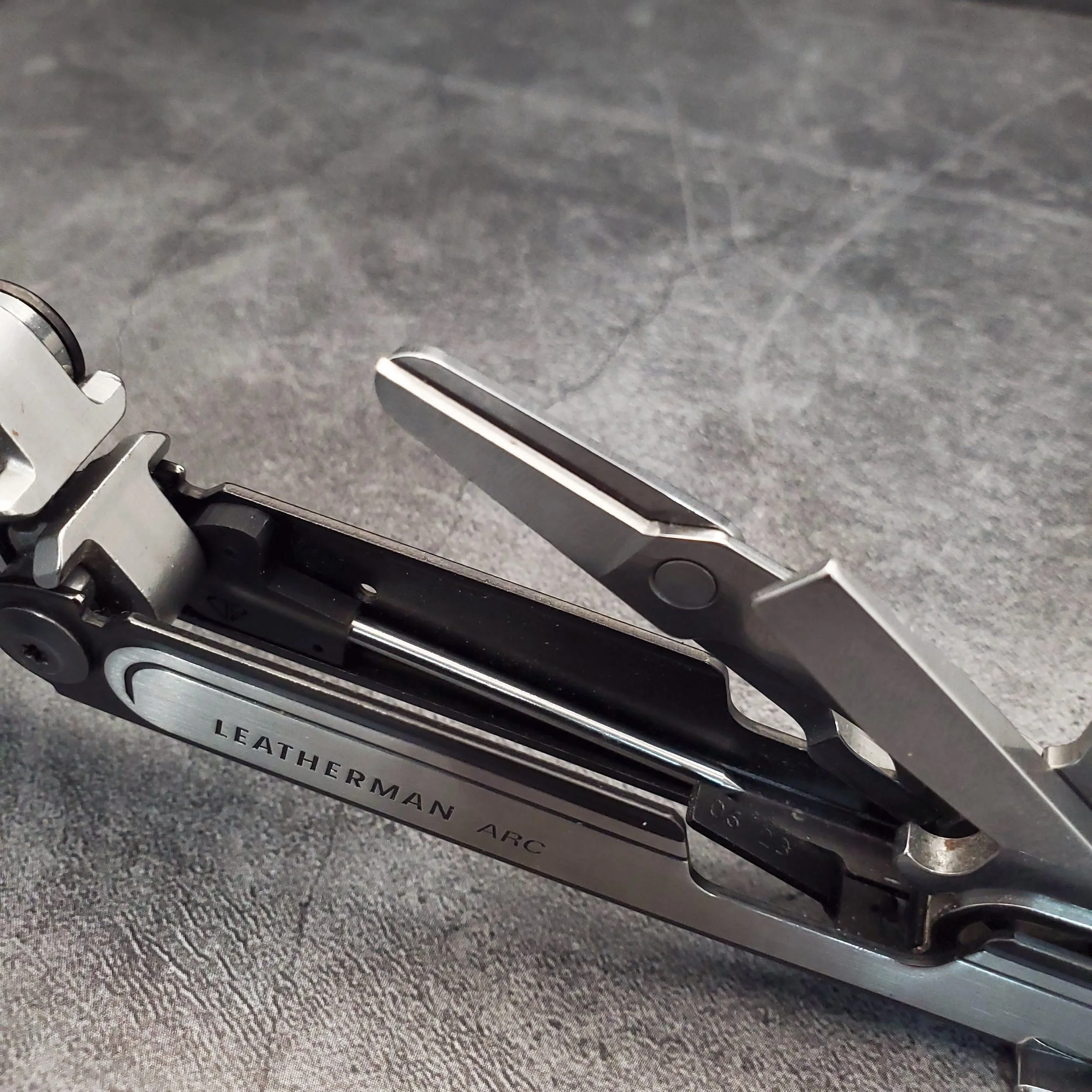

The plastic holder has two small neodymium magnets installed in it which stick to the frame under the scissors. The shape of the holder lock it into the contours of the frame for a very secure attachment. To remove it, simply push the part visible from the outside towards the hammering surface which will rotate the part and lift the opposite end enough so that the rod can easily be grabbed and the assembly removed. To install, just drop it in, slide it towards the hammer end, and close the scissors.

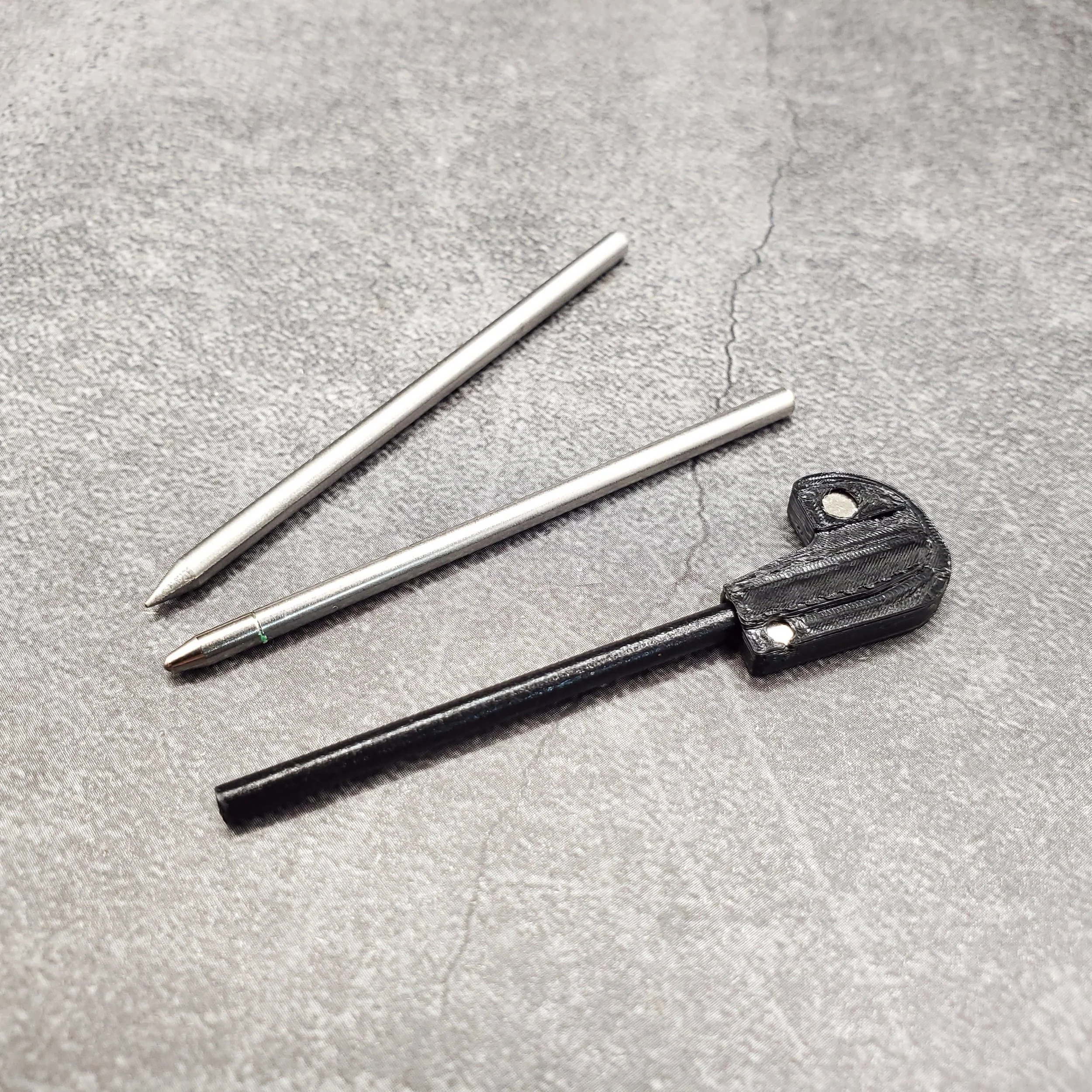

The holder is the same for the Pen, the Scribe, and the Ferro rod and the different tools can easily be removed and swapped or replaced. It is made with a durable, slightly flexible material so that it can accommodate the slight difference in diameter.
These pieces are designed and 3D printed by myself.
Leatherman tool not included
